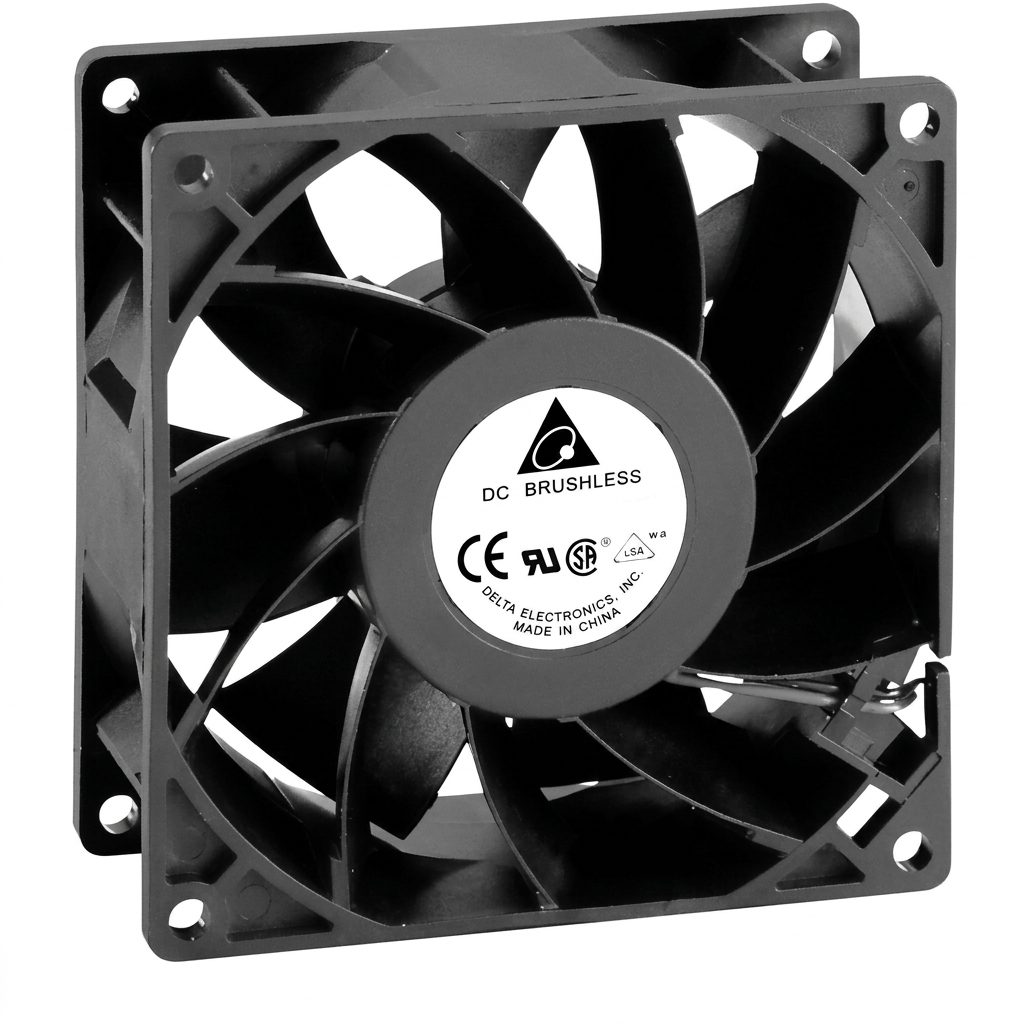

DELTA FFB0924EHE DC Fan 24V 0.75A 90X90X38mm (USED LIKE NEW)
The DELTA FFB0924EHE is a high-performance brushless DC axial fan designed to provide strong airflow and static pressure for demanding cooling applications. The fan has a compact 92 × 92 × 38mm frame, operates from a 24V DC supply, and uses a ball-bearing design. DELTA specifies a typical speed of 4800 RPM, airflow of up to 110.18 CFM, and static pressure of 0.665 inH₂O, making it suitable for applications requiring substantial heat removal.
The FFB0924EHE is commonly suitable for servers, networking equipment, industrial controllers, power supplies, electronic enclosures, and other equipment requiring high-volume forced-air cooling. The standard specification lists 0.50A rated current with 0.75A maximum current, matching the 0.75A rating commonly shown on the fan label. The supplied unit is Used Like New, making it a practical replacement for existing DELTA cooling systems.
Features:
- DELTA high-performance DC axial fan.
- Brushless DC motor.
- Ball-bearing construction.
- High-airflow design.
- High static-pressure capability.
- 92mm square mounting format.
- 38mm fan thickness.
- Designed for demanding continuous cooling.
- Suitable for industrial and electronic equipment.
- Used Like New condition.
Specifications:
| Attribute | Specification |
|---|---|
| Brand | DELTA |
| Model | FFB0924EHE |
| Fan Type | DC Axial / Tubeaxial Fan |
| Rated Voltage | 24V DC |
| Rated Current | 0.50A |
| Maximum Current | 0.75A |
| Rated Power | 12W |
| Maximum Power | 18W |

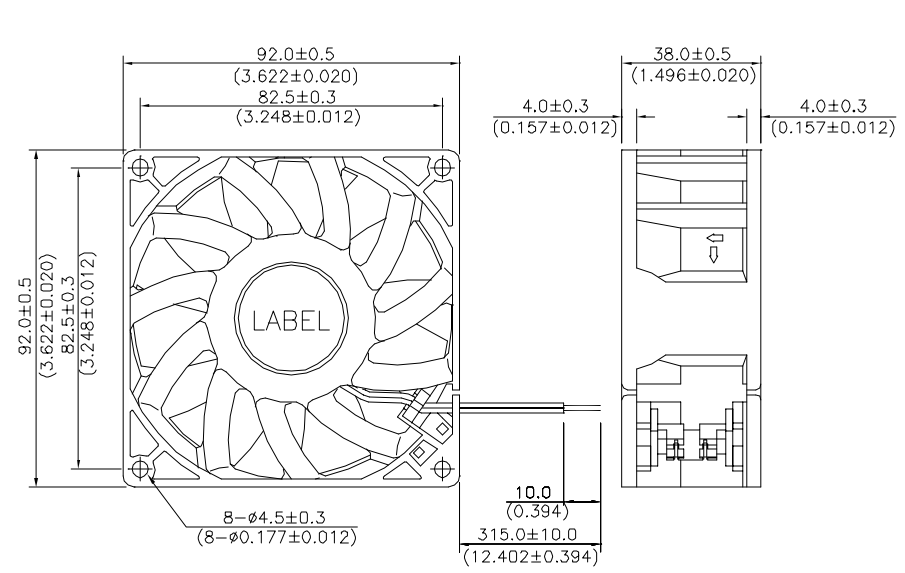

| Dimensions | 92 × 92 × 38mm |
| Speed | 4800 RPM |
| Airflow | 110.18 CFM |
| Static Pressure | 0.665 inH₂O |
| Noise Level | 55 dB(A) |
| Bearing Type | Ball Bearing |
| Connection | 2 Lead Wires |
| Operating Temperature | -10°C to +60°C |
| Weight | 198g |
| Condition | Used Like New |
Applications:
- Server cooling.
- Networking equipment cooling.
- Power supply cooling.
- Industrial control systems.
- Electronic equipment.
- Control cabinets.
- Industrial machinery.
- Electronic enclosures.
- High-performance computer cooling.
- Replacement cooling systems.
- Custom electronics projects.
Package Includes:
- 1 × DELTA FFB0924EHE DC Fan 24V 0.75A 92 × 92 × 38mm (Used Like New).
