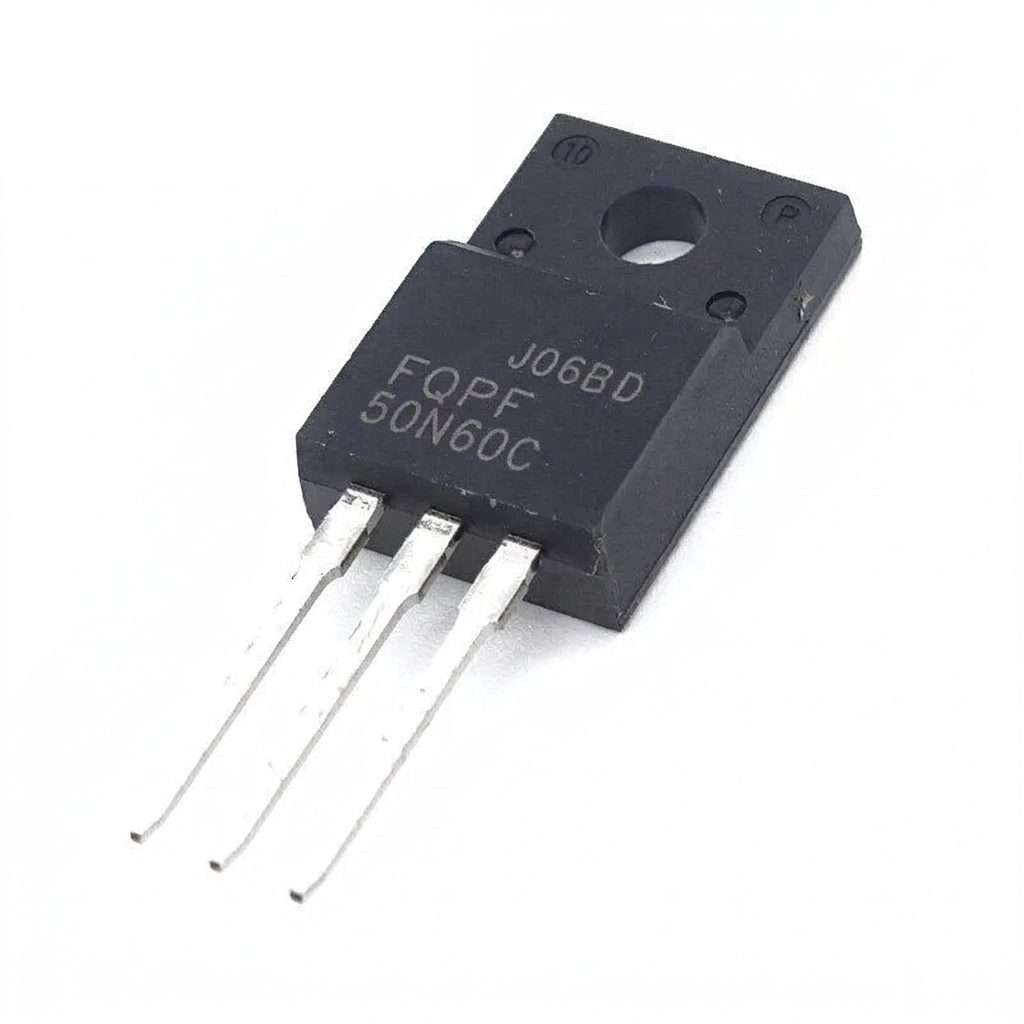

FQPF50N60 N Channel MOSFET Transistor TO-220
The FQPF50N60 is a 600V N-Channel MOSFET transistor produced using advanced planar stripe DMOS technology. This technology is designed to minimize on-state resistance and provide superior switching performance, making it ideal for power electronics applications. The device is engineered to withstand high-energy pulses, both in avalanche and commutation modes, ensuring its robustness in challenging operational conditions.
This MOSFET features a low gate charge, allowing for efficient switching, and is capable of withstanding high voltages. Its low on-resistance ensures minimal power loss during operation, which is a critical factor in power electronics. Additionally, the device has been rigorously tested for avalanche performance, offering improved safety and reliability. The FQPF50N60 is also known for its excellent dv/dt capability, which allows it to handle fast switching speeds without compromising its stability.
Designed for high-efficiency switch mode power supplies, this MOSFET excels in environments where efficiency and reliability are paramount. The FQPF50N60’s characteristics make it suitable for a range of industrial, automotive, and general-purpose applications, providing consistent performance across various systems requiring power conversion.
Features:
- Low Gate Charge .
- Low On-Resistance (2.0Ω at VGS = 10V).
- Fast Switching.
- 100% Avalanche Tested.
- Improved dv/dt Capability.
- TO-220F Package with 4.0kV Isolation.
Specifications:
| Parameter | Value |
|---|---|
| Drain-Source Voltage (VDSS): | 600V |
| Drain Current (ID): | 2.8A |
| Pulsed Drain Current (IDM): | 11.2A |
| Gate-Source Voltage (VGSS): | ±30V |
| Single Pulsed Avalanche Energy (EAS): | 300mJ |
| Power Dissipation (PD): | 40W |
| Thermal Resistance (RθJC): | 3.13°C/W |
| Thermal Resistance (RθJA): | 62.5°C/W |
| Gate Threshold Voltage (VGS(th)): | 3.0-5.0V |
| On-Resistance (RDS(on)): | 1.57-2.0Ω |
| Gate Charge (Qg): | 16-20nC |

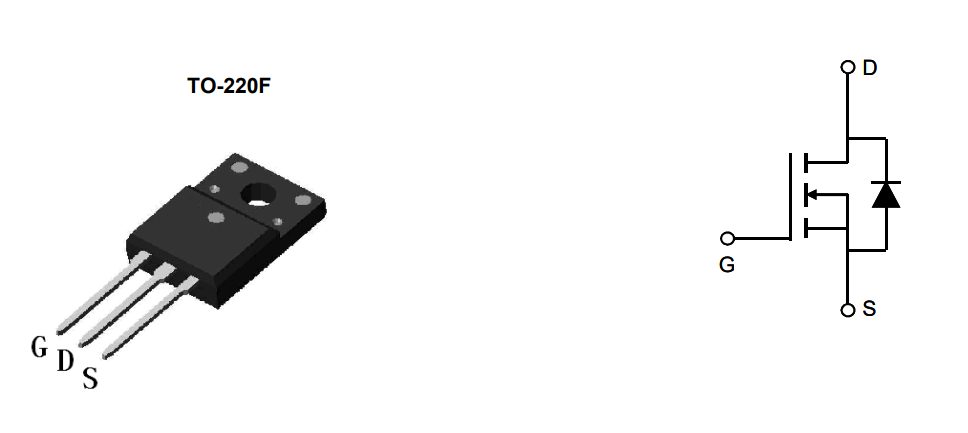

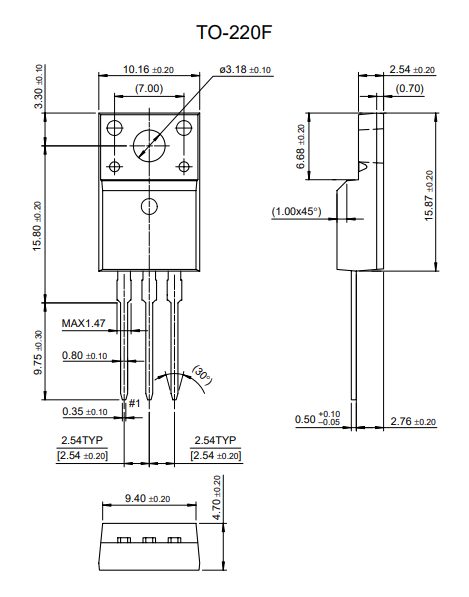

Pinout Diagram:
Applications:
- High-Efficiency Power Supplies.
- Automotive Systems.
- Motor Control Systems.
- Power Conversion Circuits.
- Inductive Load Switching.
