Hitachi HD14069UB Hex Inverter IC 5V-15V 0.5nA DIP-14
The HD14069UB is a high-performance CMOS Hex Inverter Integrated Circuit manufactured by Hitachi. It contains six independent inverter circuits within a single compact package. Operating over a wide power supply range, this device is engineered for low power dissipation and exceptional reliability. It is an unbuffered inverter line optimized for general-purpose logic inversion where high noise immunity and minimal quiescent current are required.
Features
- Ultra-Low Power Consumption
- High Noise Immunity
- Standard Compatibility
- Drop-in Replacement

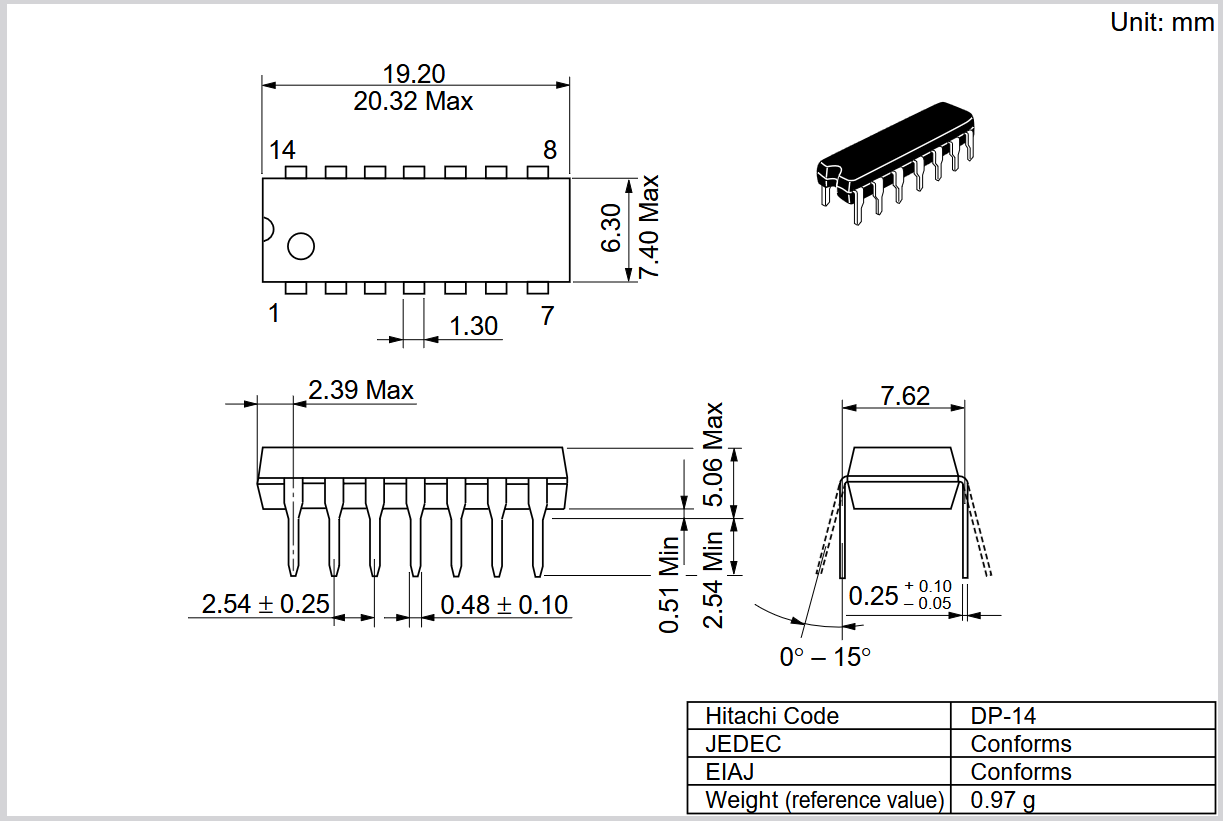

Specifications
| Parameter / Characteristic | Test Conditions / VDD | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| DC Electrical Characteristics | |||||
| Supply Voltage Range (VDD) | — | 5.0 | — | 15.0 | V |
| Quiescent Current (IDD per Package) | 5.0 V | — | 0.0005 | 1.0 | μA |
| 10.0 V | — | 0.0010 | 2.0 | μA | |
| 15.0 V | — | 0.0015 | 4.0 | μA | |
| Output High Voltage (VOH) | 5.0 V, Iout = 0 | 4.95 | 5.0 | — | V |
| 10.0 V, Iout = 0 | 9.95 | 10.0 | — | V | |
| 15.0 V, Iout = 0 | 14.95 | 15.0 | — | V | |
| Output Low Voltage (VOL) | 5.0V / 10.0V / 15.0V | — | 0 | 0.05 | V |
| Typical Output Sink Current (IOL) | 5.0 V, VOL = 0.4V | 0.52 | 0.88 | — | mA |
| 10.0 V, VOL = 0.5V | 1.3 | 2.25 | — | mA | |
| 15.0 V, VOL = 1.5V | 3.6 | 8.8 | — | mA | |
| Typical Output Source Current (IOH) | 5.0 V, VOH = 4.6V | -0.52 | -0.88 | — | mA |
| 10.0 V, VOH = 9.5V | -1.3 | -2.25 | — | mA | |
| 15.0 V, VOH = 13.5V | -3.6 | -8.8 | — | mA | |
| Input Capacitance (Cin) | — | — | 5.0 | 7.5 | pF |
| Switching Characteristics (CL = 50 pF, Ta = 25°C) | |||||
| Propagation Delay Time (tPLH / tPHL) | 5.0 V | — | 65 | 125 | ns |
| 10.0 V | — | 40 | 80 | ns | |
| 15.0 V | — | 30 | 60 | ns | |
| Output Rise / Fall Time (tr / tf) | 5.0 V | — | 100 | 200 | ns |
| 10.0 V | — | 50 | 100 | ns | |
| 15.0 V | — | 40 | 80 | ns | |
| Operating Temperature Range | — | -40 | — | 85 | °C |
Applications
- General-purpose logic signal inversion.
- High noise-immune digital logic circuits.
- Low-power Schottky TTL interface matching.
- Battery-operated devices demanding minimal static power layout.
Package Content
- 1 x Hitachi HD14069UB Hex Inverter IC 5V-15V 0.5nA DIP-14
