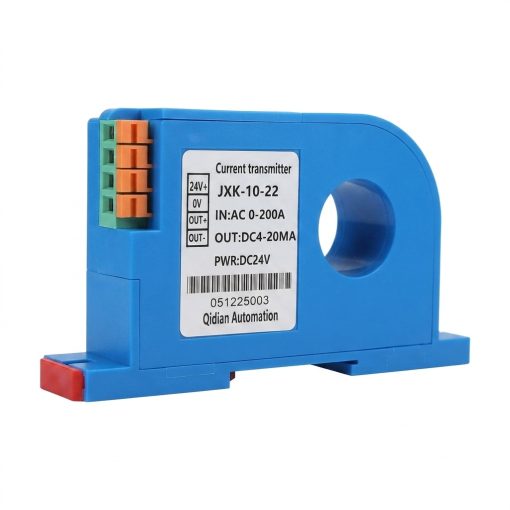

JXK-10-22 DIN Rail Current Transmitter Sensor 24VDC AC0-200A Primary & DC4-20mA Secondary
The JXK-10-22 DIN Rail Current Transmitter Sensor is a high-precision current measurement device designed to convert AC current into a standard industrial DC4-20mA output signal. The transmitter adopts an open-loop Hall-effect and electromagnetic isolation design that provides reliable signal conversion while maintaining complete electrical isolation between the input, output, power supply, and housing. This design improves system safety and offers excellent resistance to electromagnetic interference in demanding industrial environments.
Features:
- Input overload protection
- Output overcurrent limit protection
- Output current short-circuit protection
- Wide voltage power supply
- Working power reverse protection
- Light weight and easy installation
- High precision, good linearity
- Wide frequency band, low temperature drift
- Fast response, strong anti-interference ability
Specifications:
| Parameter | Value |
|---|---|
| Product Model | JXK-10-22 |
| Manufacturer | Qidian Automation |
| Measurement Type | AC Current Transmitter |
| Primary Input Range | AC0-200A |
| Secondary Output | DC4-20mA |
| Power Supply | DC24V |
| Isolation Voltage | 2.5kV/50Hz,1Min |
| Linearity | 0.5% |
| Accuracy | 0.5%-1.0% |
| Frequency Bandwidth | DC~20kHz |
| Temperature Drift | <500PPM/°C |
| Response Time | <200ms |
| DI/DT Follow Rate | >50A/uS |
| Power Consumption | 10mA+Iout |
| Operating Temperature | -10°C~+70°C |
| Storage Temperature | -25°C~+85°C |
| Mounting Type | 35mm DIN Rail |
Wiring Diagram:
Applications:
- Motor current monitoring and protection in industrial drive systems.
- Power distribution panel load monitoring and energy management.
- HVAC system compressor and fan current sensing.
- Pump and conveyor motor overload detection.
- Generator and alternator output current measurement.
- Building automation and smart panel current monitoring.
- Renewable energy inverter AC side current acquisition.
- Process control system analog feedback loops.
Package Include:
1x JXK-10-22 DIN Rail Current Transmitter Sensor 24VDC AC0-200A Primary & DC4-20mA Secondary
