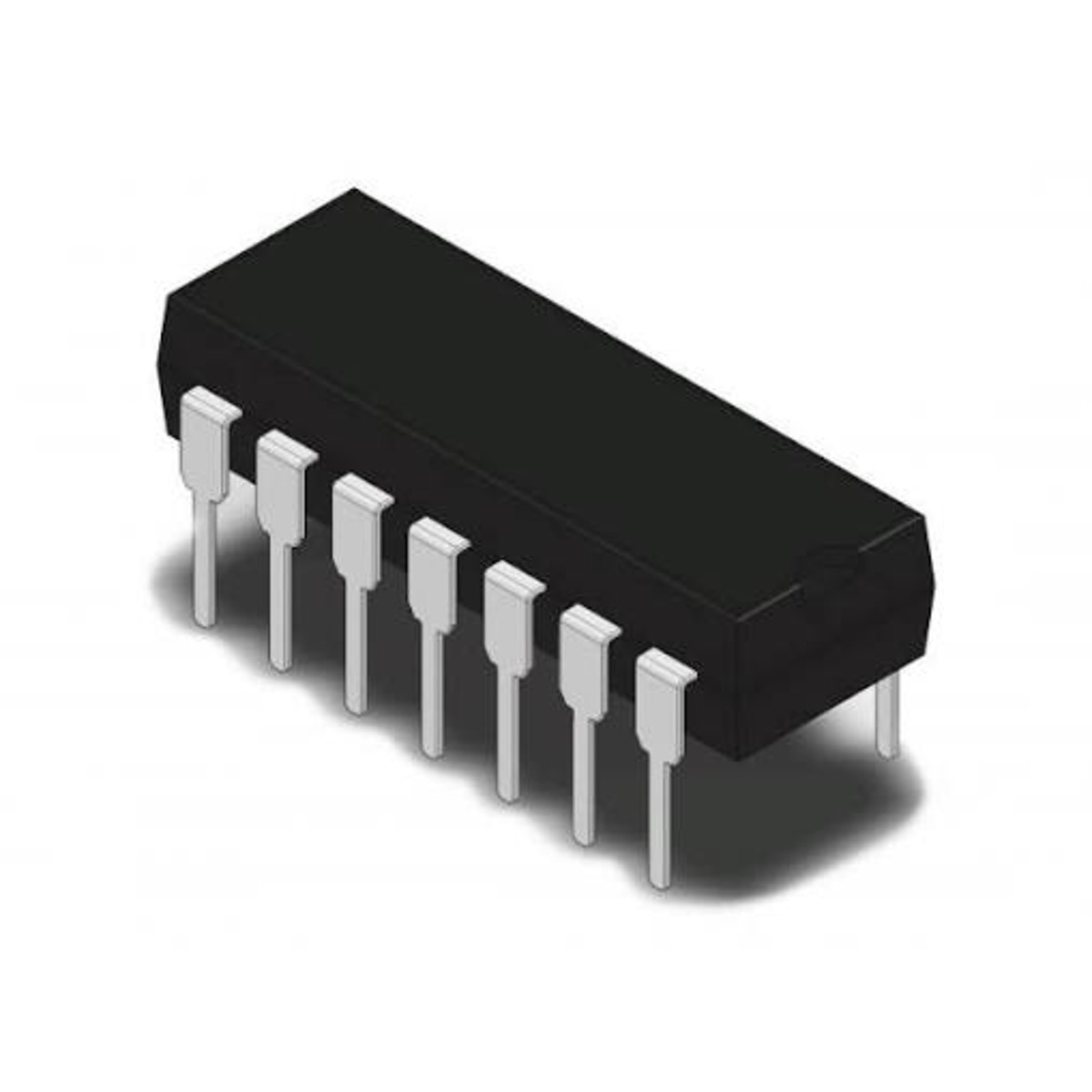

MC1488P Quad Line Driver 15V 10mA DIP-14
The MC1488P is a monolithic quad line driver designed for RS-232C data communication interfaces. It contains four driver circuits and converts DTL/TTL logic levels into RS-232C-compatible signal levels with one stage of inversion. The device is designed to interface data terminal equipment with data communications equipment according to the EIA RS-232C standard.
The device features current-limited outputs, TTL- and microprocessor-compatible inputs, power-off output impedance, and slew-rate control using external capacitors. The datasheet specifies the MC1488P in a 14-pin plastic DIP package, with an operating ambient temperature range of 0°C to 75°C.
Features:
- Current limited output ±10mA typ.
- Power-off source impedance 300Ω min.
- Simple slew rate control with external capacitor
- Flexible operating supply range
- Inputs are TTL and µP compatible
Specifications:
| Parameter | Value |
|---|---|
| Device Type | Quad RS-232 Line Driver |
| Number of Drivers | 4 |
| Package | DIP-14 |
| Part Number | MC1488P |
| Input Compatibility | TTL / DTL / Microprocessor |
| Power Supply Voltage (VS) | Up to +15V |
| Negative Supply Voltage (VEE) | Down to −15V |
| Input Voltage Range | −15V to +7V |
| Output Signal Voltage | ±15V |
| Output Short-Circuit Current | Typically ±10mA |
| Output Resistance, Power Off | 300Ω minimum |
| Operating Ambient Temperature | 0°C to 75°C |
| Storage Temperature | −65°C to 150°C |
| Typical Power Consumption at ±9V | 333mW |

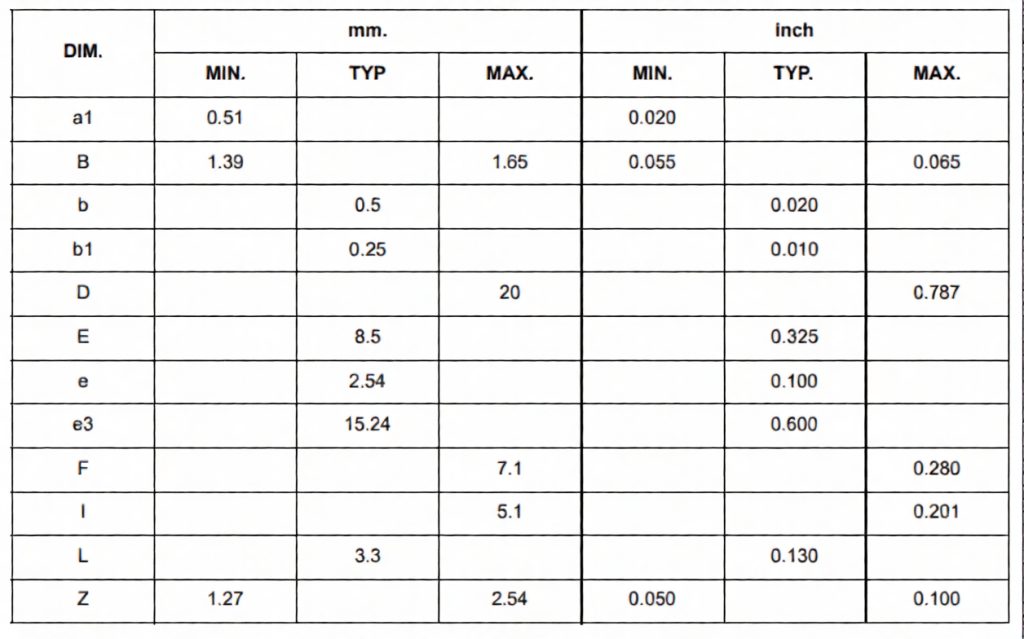

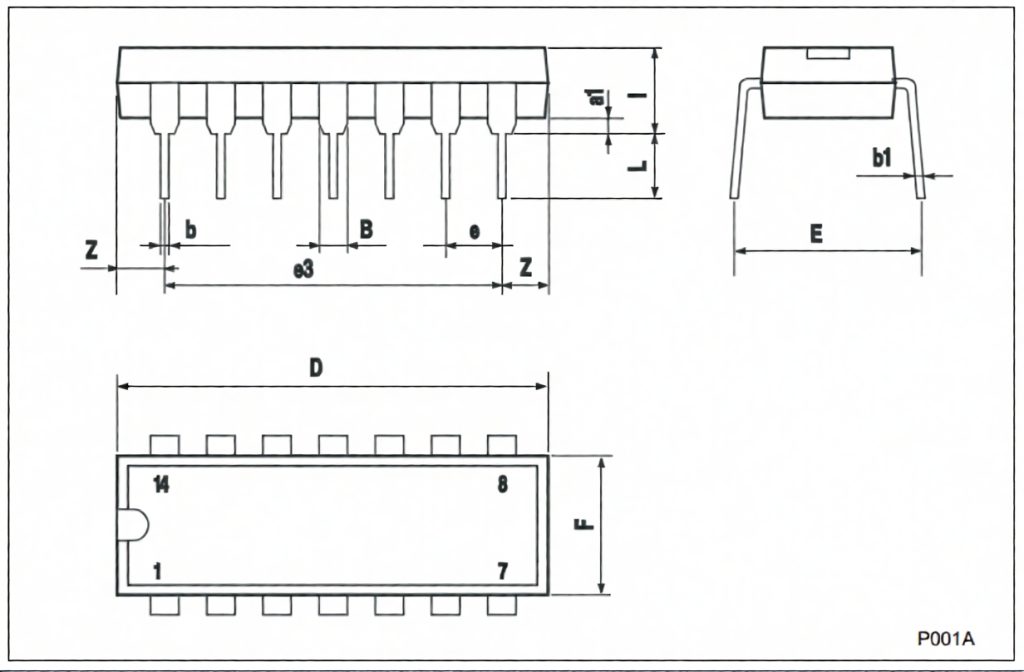

Pinout:
Applications:
- RS-232C communication interfaces.
- Data terminal equipment interfaces.
- Data communication equipment interfaces.
- TTL/DTL-to-RS-232 level conversion.
- Microprocessor communication interfaces.
- Serial communication circuits.
Packages Included:
- 1 × MC1488P Quad Line Driver 15V 10mA DIP-14.
