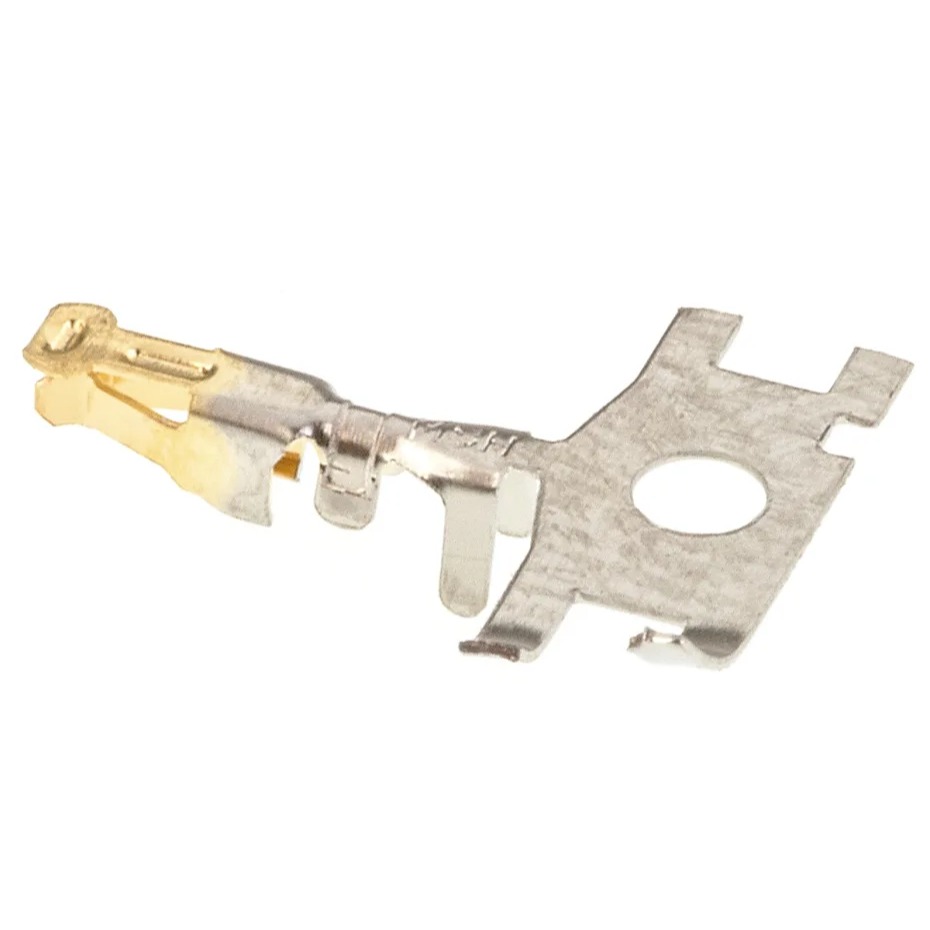

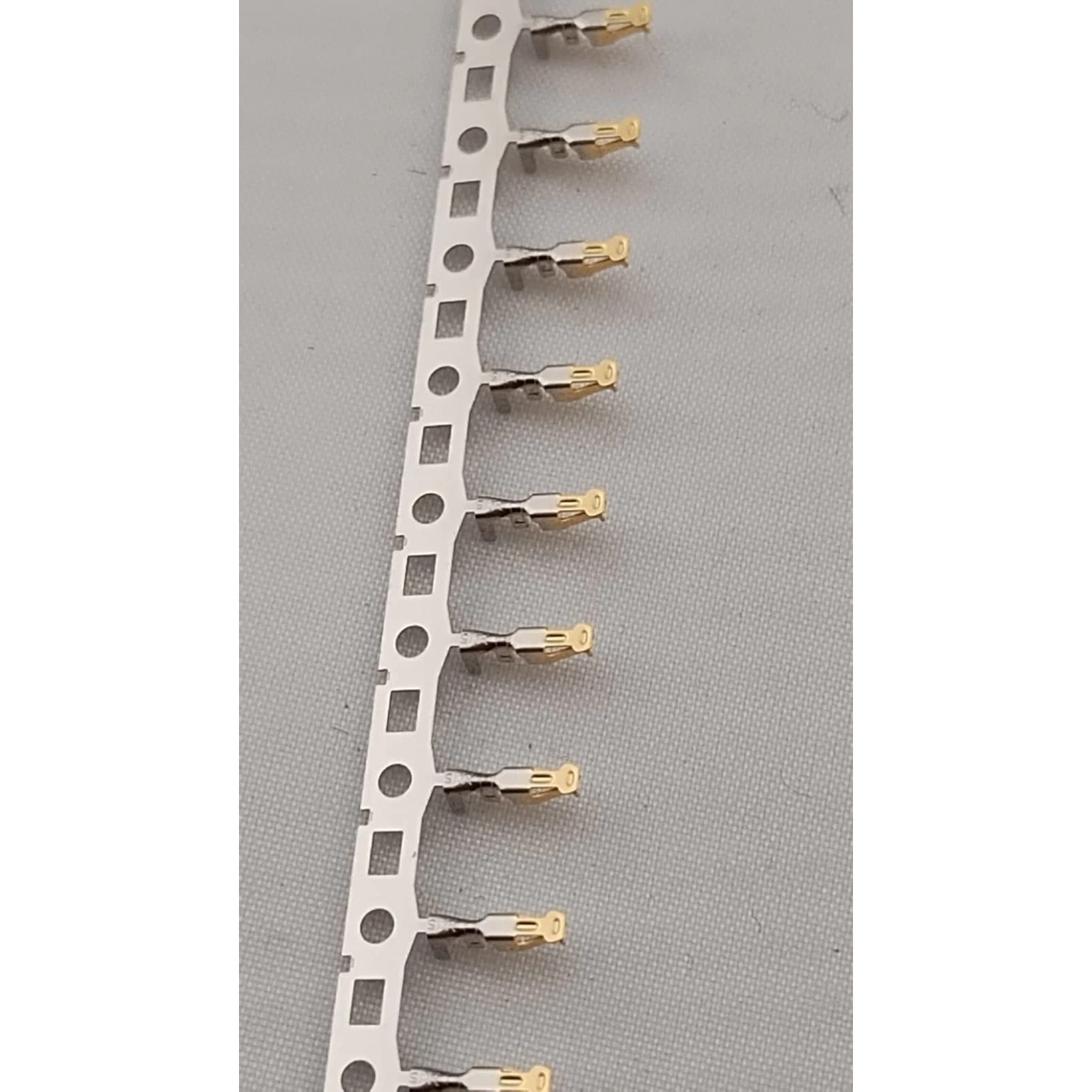

MOLEX 50394-8051 Female Wire Terminal
The MOLEX 50394-8051, also identified as 0503948051, is a female crimp terminal designed for the 2.00mm-pitch Milli-Grid connector system. It provides a female socket contact for mating with compatible male contacts in Milli-Grid connector assemblies.
Features:
- Female socket crimp terminal.
- Model number 50394-8051.
- 2.00mm pitch Milli-Grid connector system.
- 24-30 AWG wire compatibility.
- Crimp or compression termination.
- Copper alloy contact material.
Specifications:
| Parameter | Value |
|---|---|
| Model Number | 50394-8051 |
| Alternative Part Number | 0503948051 |
| Series | 50394 |
| Connector System | Milli-Grid |
| Connector Type | Female Crimp Terminal |
| Contact Gender | Female |
| Pitch | 2.00mm. |
| Application | Signal / Wire-to-Board / Wire-to-Wire. |
| Contact Material | Copper Alloy. |
| Mating Contact Plating | Select Gold. |
| Minimum Mating Plating Thickness | 0.381µm. |
| Termination Plating | Nickel. |
| Minimum Termination Plating Thickness | 2.000µm. |
| Termination Interface | Crimp or Compression. |
| Wire Size | 24-30 AWG. |
| Wire Size Range | 0.049-0.22mm². |
| Maximum Wire Insulation Diameter | 1.40mm. |
| Maximum Current Per Contact | 2A. |
| Maximum Voltage | 125V AC RMS/DC. |
| Maximum Mating Cycles | 50. |
Applications:
- Wire-to-board connections.
- Wire-to-wire connections.
- Signal connections.
- Compact cable assemblies.
- Electronic wiring harnesses.
- PCB connector assemblies.
- Computer equipment.
- Telecommunications equipment.
- Robotics.
- Automotive electronics.
- Industrial electronics.
- Embedded electronic systems.
- Compact electronic devices.
Package Include:
1x MOLEX 50394-8051 Female Wire Terminal.
