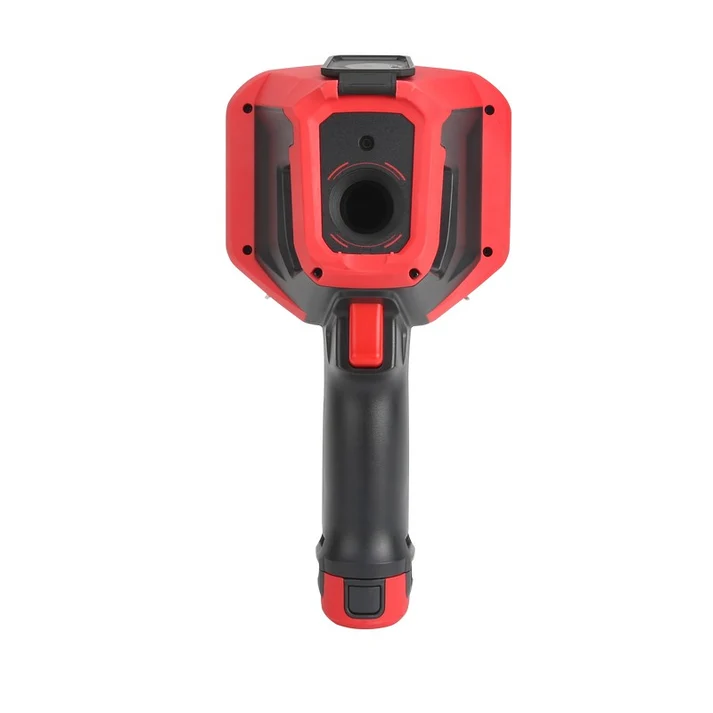

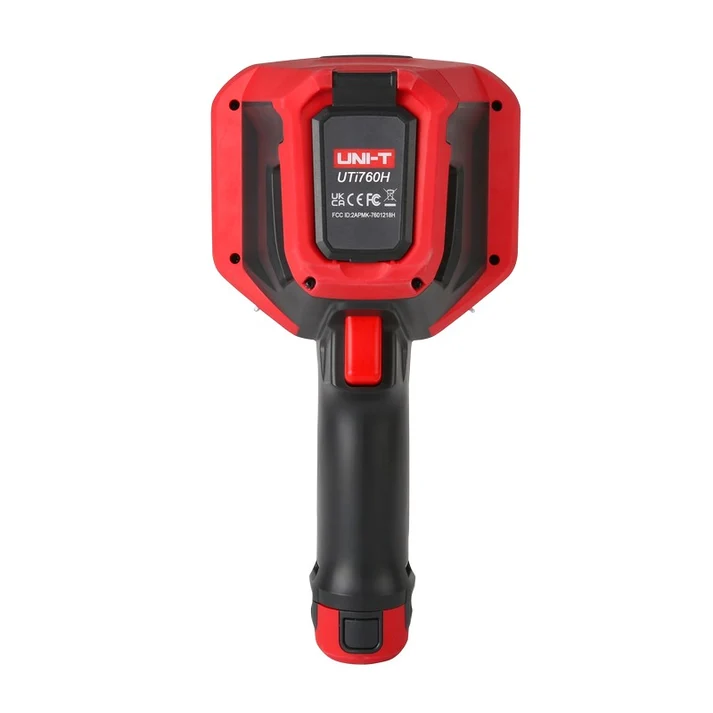

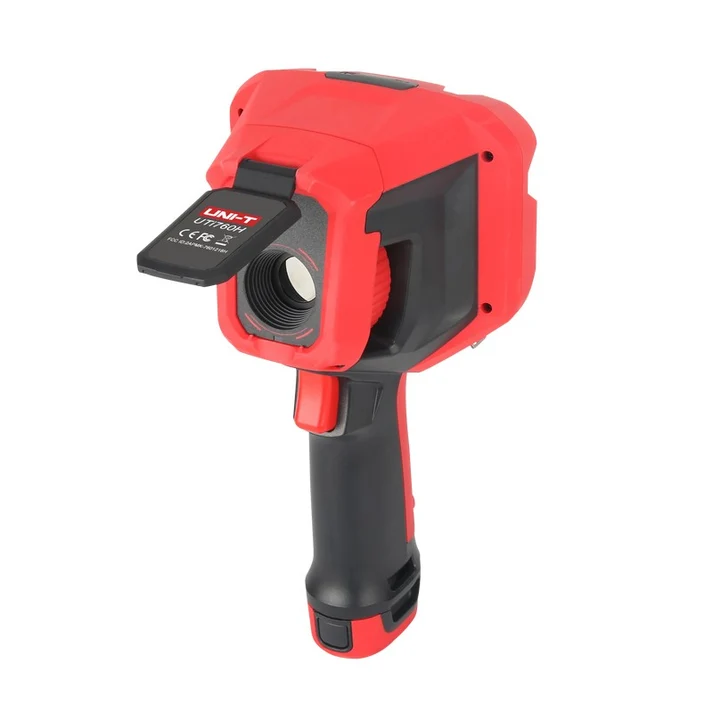

UNI-T UTi760H Professional Enhanced Thermal Imager
The UNI-T UTi760H is a professional thermal imaging instrument designed for industrial inspection, preventive maintenance, electrical troubleshooting, and building diagnostics. It features a high-resolution infrared detector that captures thermal images at 640 × 480 pixels, with Super Resolution enhancement up to 1280 × 960 pixels. Its thermal sensitivity of less than 35 mK helps reveal subtle temperature differences, while manual focus enables clear imaging of both nearby and distant targets. The instrument measures temperatures from -20°C to 650°C, making it suitable for inspecting electrical connections, motors, bearings, power distribution equipment, and other heat-generating components.

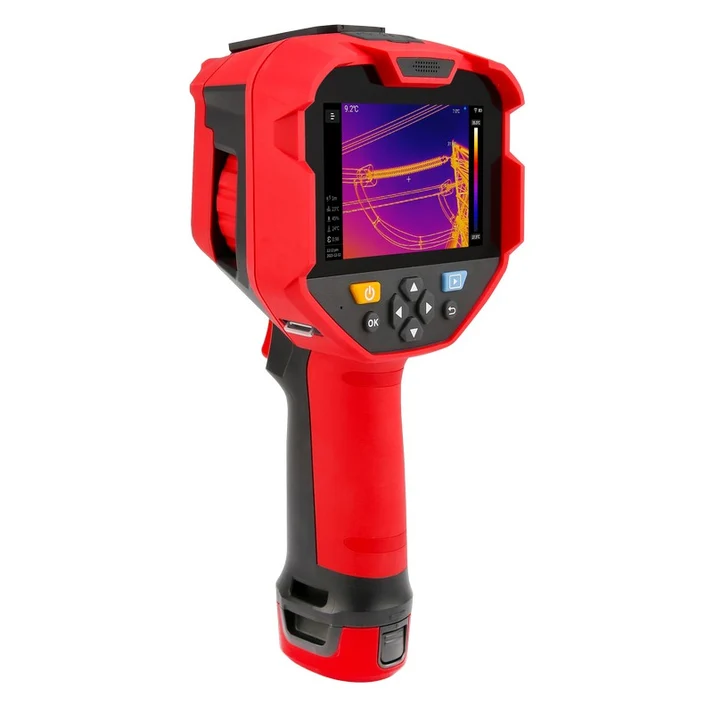

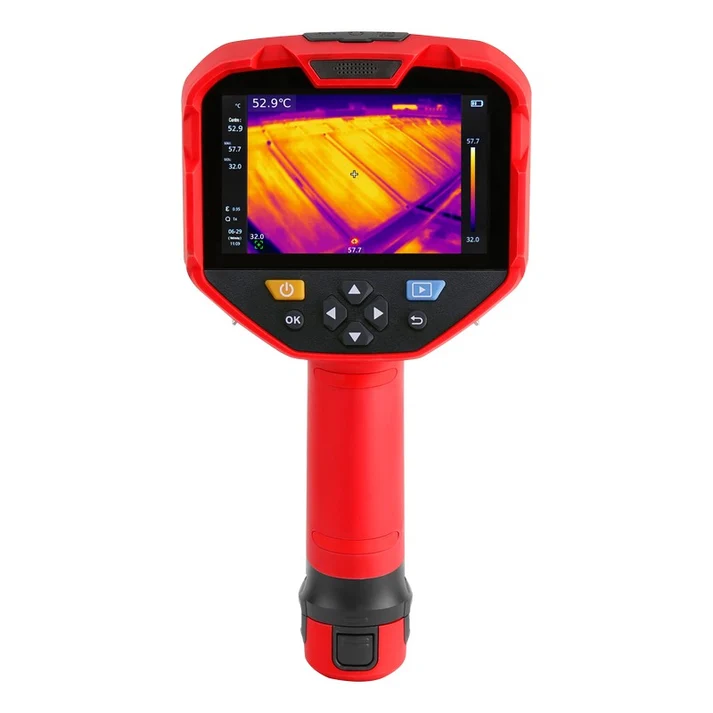

The thermal imager features a 4.3-inch capacitive touchscreen, a visible-light camera, multiple image display modes, and T-Mix image fusion for combining thermal and visible images. It supports radiometric photo and video recording, Wi-Fi live streaming, and data transfer to compatible PC and mobile analysis software. Its detachable rechargeable battery, IP54 protection rating, and 2-meter drop resistance make it suitable for field inspections and industrial maintenance environments.
Features:
- 640×480 infrared resolution — high-definition thermal detail, lifted to 1280×960 with Super Resolution.
- <35mK thermal sensitivity (NETD) — resolves fine temperature differences for early fault detection.
- Manual focus ring — sharp measurement of both near and distant targets.
- 4.3″ capacitive touchscreen (800×480) — fast menu navigation and on-screen measurement.
- ≤30 Hz frame rate — smooth live imaging while panning across equipment.
- Radiometric video recording — capture MP4 and UIR video with full temperature data.
- 16-point analyzer toolkit — 16 points, lines, rectangles, and circles with Hi/Lo tracking.
- T-Mix fusion — blends thermal and visible images to locate faults in context.
- Wi-Fi live streaming — stream to PC/app or transfer radiometric files wirelessly.
- Detachable 5200 mAh battery — field-replaceable, approx. 4h per charge.
- IP54 + 2m drop rating — sealed and ruggedized for the job site.
Specifications:
| Max Temperature | 650°C |
|---|---|
| IR Resolution | 640×480 |
| Thermal Sensitivity (NETD) | <35mK |
| Field of View | 24°(H) × 19.3°(V) |
| Focus | Manual Focus |
| Refresh Rate | 30Hz |
| Display Size | 4.3″ LCD Touch (800×480) |
| Image Format | Radiometric JPEG |
| Instrument Type | Professional Thermal Imager |
| Min Temperature | -20°C |
|---|---|
| Spectral Response | 8~14μm |
| Pixel Pitch | 12μm |
| Spatial Resolution | 0.67mrad |
| Image Modes | Thermal, Visual image, T-Mix fusion, PIP |
| Digital Zoom | 1x~6x |
| Thermal Temperature Accuracy | 0°C~650°C, ±1.5°C or ±1.5% whichever is greater -10°C~0°C, ±2°C or ±2% whichever is greater |
| Color Palettes | White Hot, Black Hot, Red Hot, Ironbow, Rainbow HC, Rainbow, Lava |
| Detector Type | UFPA (Vanadium oxide) |
| Focal Length | 18mm |
| Frame Rate | ≤30Hz |
| Hi Lo Temperature Alarm | LCD animation & Buzzer |
| Analysis Software | PC+APP |
| Annotation | Text & Voice |
| Features | |
| Video Format | MP4 & UIR (with radiometric data) |
| On Screen Analyzer | 16 Points/16 Lines/16 Rectangles/16 Circles |
| Languages | EN, FR, DE, IT, ES, SV, PL, CS |
| Digital Camera | 5MP |
| General Information | |
| Display Type | LCD |
| Display Resolution | 800×480 |
| Interface | Type-C |
| Battery | 5200mAh detachable Li-ion battery pack (UT-M17) |
| Battery Life | Approx. 4 hours (with Wi-Fi off) |
| Data Storage | Built-in 32GB & 32GB SD card |
| IP Rating | IP54 |
| Drop Rating | 2m |
| Dimensions (W×H×D) | 270mm×130mm×110mm |
| Weight | 750g |
| Warranty | 1 year |
| Certifications | CE, FCC, RoHS |
Applications:

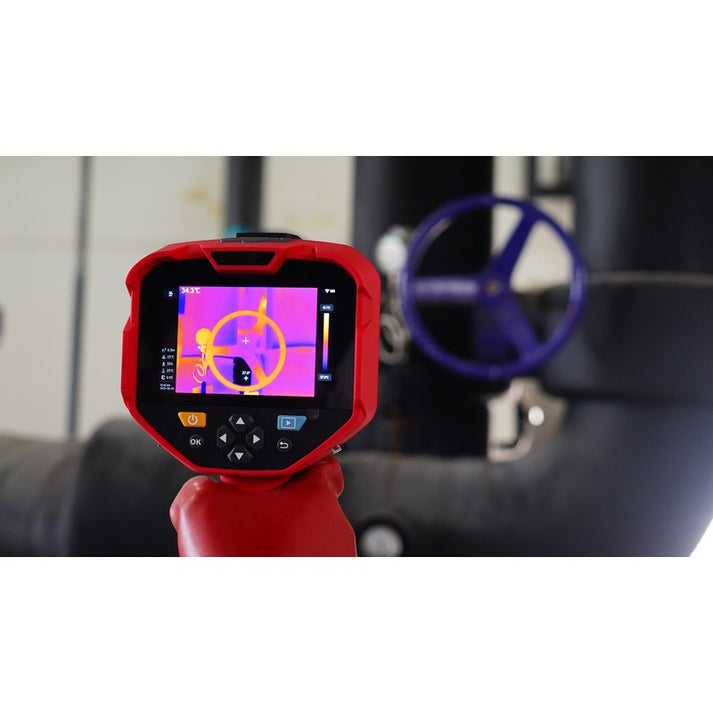

- Electrical panel and switchgear inspection.
- Overheated cable and connector detection.

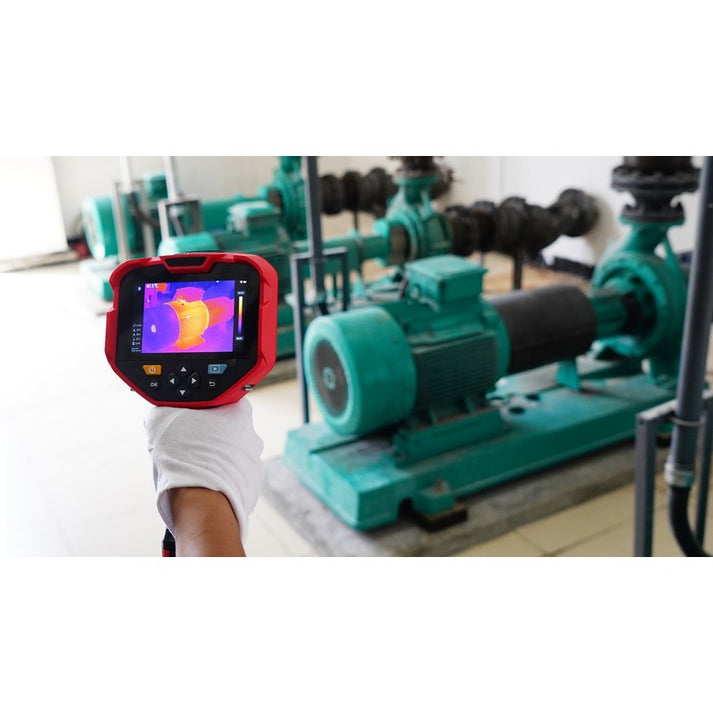

- Motor, bearing, and pump maintenance.

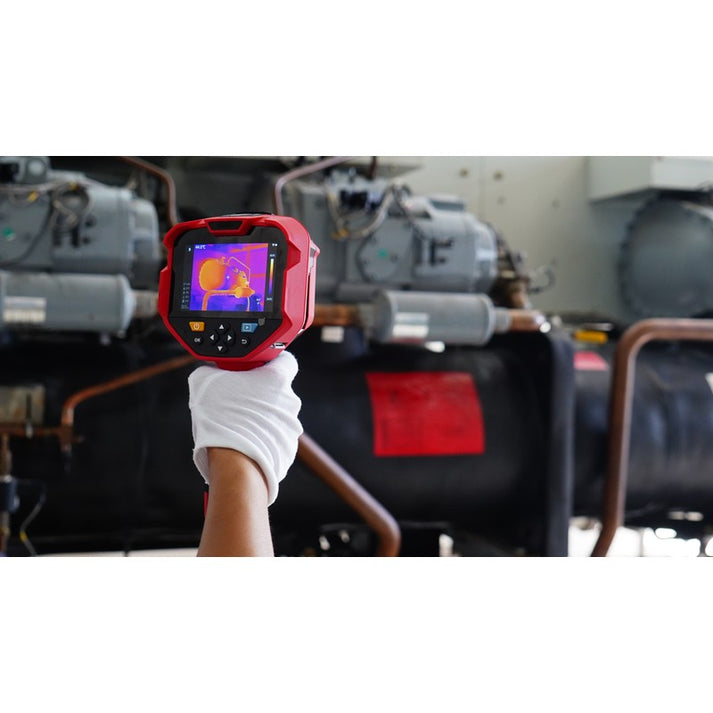

- HVAC system diagnostics.
- Building insulation and heat-loss inspection.
- Industrial equipment preventive maintenance.
- Mechanical fault detection.
- Power distribution system inspection.
- Thermal assessment of machinery.
- Roof and wall temperature inspection.
- Thermal documentation and maintenance reporting.
Package Includes:
- 1 × UNI-T UTi760H Professional Enhanced Thermal Imager.
