What is an Ultrasonic Cleaner?

Contents List

• Introduction of Ultrasonic Cleaning.
• What Is Ultrasonic Cleaning?
• How Does Ultrasonic Cleaning Work?
• What Is Cavitation?
• Ultrasonic Cleaning Frequency.
• Important Factors Affecting Cleaning Performance.
• Advantages of Ultrasonic Cleaning.
• Limitations of Ultrasonic Cleaning.
• Precautions and guidelines for use Ultrasonic Cleaning.
• Applications of Ultrasonic Cleaning.
• Ultrasonic Cleaning vs Conventional Cleaning.
• Frequently Asked Questions.
• Conclusion.

Reading Time Approximately is 15 minute

Introduction of Ultrasonic Cleaning

Ultrasonic cleaning is an effective cleaning method that uses high-frequency sound waves to remove dirt, grease, oil, oxidation, flux residues, and other contaminants from the surface of objects and components. Unlike conventional cleaning methods that depend mainly on brushing, wiping, or spraying, ultrasonic cleaning can reach small openings, cavities, gaps, and difficult-to-access areas.

The technology is widely used in electronics repair, laboratories, manufacturing, automotive maintenance, jewelry cleaning, medical equipment processing, and precision engineering. Its ability to clean complex objects thoroughly makes it particularly useful when conventional cleaning methods cannot reach every surface.

What Is Ultrasonic Cleaning?

Ultrasonic cleaning is a cleaning process in which high-frequency sound waves are transmitted through a liquid cleaning solution. These sound waves create microscopic bubbles that rapidly form and collapse within the liquid.

This phenomenon, known as cavitation, produces localized mechanical energy that helps loosen and remove contaminants from the surfaces of immersed objects.

The cleaning solution carries the loosened contaminants away from the surface, allowing the object to be cleaned without requiring aggressive mechanical scrubbing.

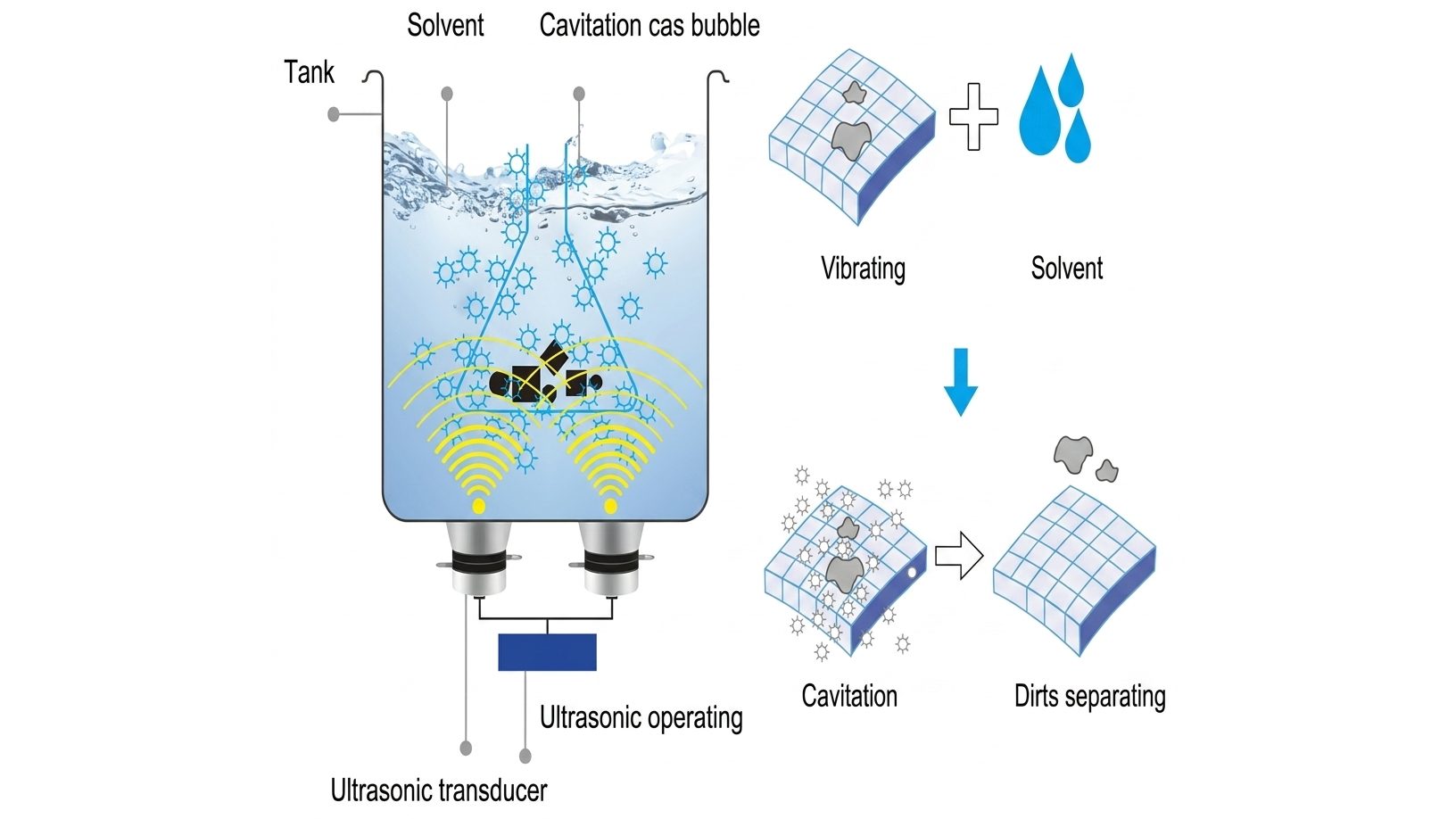

How Does Ultrasonic Cleaning Work?

The ultrasonic cleaning process generally involves three main stages:

1- Generation of Ultrasonic Waves

An ultrasonic generator converts electrical energy into a high-frequency electrical signal. This signal is supplied to ultrasonic transducers installed in or attached to the cleaning tank.

2- Conversion Into Mechanical Vibrations

The ultrasonic transducers convert the electrical signal into high-frequency mechanical vibrations. These vibrations are transferred to the cleaning liquid.

Common ultrasonic cleaning systems operate at frequencies ranging from approximately 20 kHz to 200 kHz, depending on the application and the type of contamination being removed.

3- Cavitation and Contaminant Removal

As ultrasonic waves travel through the liquid, they create alternating high-pressure and low-pressure regions. During the low-pressure cycles, microscopic bubbles form in the liquid.

These bubbles rapidly collapse during subsequent pressure cycles. The repeated formation and collapse of these bubbles generates localized forces that loosen contaminants from the object’s surface.

This process allows the cleaning solution to penetrate areas that are difficult to reach using conventional cleaning techniques.

What Is Cavitation?

Cavitation is the fundamental cleaning mechanism behind ultrasonic cleaning.

When ultrasonic waves pass through a liquid, they create pressure variations. During low-pressure cycles, tiny vapor-filled cavities or bubbles can form. When these bubbles collapse, they release a significant amount of localized energy.

The effect occurs on a very small scale, but millions of cavitation events can take place throughout the cleaning solution. This creates a highly effective cleaning action around the immersed object.

The effectiveness of cavitation depends on several factors:

• Including ultrasonic frequency.
• Cleaning solution.
• Temperature.
• Contamination type.
• Ultrasonic power.

Ultrasonic Cleaning Frequency

Ultrasonic cleaning systems are available at different operating frequencies. The selected frequency affects the size and intensity of cavitation bubbles.

Lower frequencies generally produce larger and more energetic cavitation bubbles, while higher frequencies produce smaller bubbles that can provide more uniform cleaning in fine structures.

Important Factors Affecting Cleaning Performance

Several parameters determine how effectively an ultrasonic cleaner performs:

• Ultrasonic Frequency: The frequency determines the characteristics of cavitation and should be selected according to the type of object and contamination.
• Ultrasonic Power: Higher ultrasonic power can increase cleaning intensity, but excessive power may damage delicate components or sensitive surfaces.
• Cleaning Solution: The cleaning solution must be compatible with the material being cleaned. Water-based solutions are commonly used, while specialized detergents may be required for oils, grease, flux, or other contaminants.
• Temperature: Increasing the solution temperature can improve the removal of certain contaminants and may enhance the performance of the cleaning solution. However, excessive temperature can damage sensitive materials or electronic components.
• Cleaning Time: Longer cleaning times do not always produce better results. The required time depends on contamination, solution chemistry, ultrasonic power, temperature, and component construction.

Advantages of Ultrasonic Cleaning

Ultrasonic Cleaning provides several important advantages:

• Cleans difficult-to-reach areas that conventional tools may not access.
• Removes contaminants without extensive manual scrubbing.
• Provides relatively uniform cleaning around complex objects.
• Can clean small components and intricate mechanical structures.
• Reduces the need for aggressive mechanical cleaning.
• Can improve productivity in repair and manufacturing environments.
• Allows multiple compatible parts to be cleaned simultaneously.
• Can be used with different cleaning solutions for different applications.

Limitations of Ultrasonic Cleaning

Although ultrasonic cleaning is highly effective, it is not suitable for every application.

Technicians should consider the following precautions:

• Do not place incompatible electronic devices directly into the cleaning solution.
• Remove batteries and other components that can be damaged by liquid exposure.
• Verify the compatibility of plastics, adhesives, coatings, seals, and finishes.
• Avoid excessive ultrasonic power when cleaning delicate parts.
• Select the cleaning solution according to the material and contamination.
• Follow the manufacturer’s recommendations for sensitive components.
• Rinse components properly when required by the cleaning process.
• Dry components completely before electrical testing or reassembly.

Precautions and guidelines for use Ultrasonic Cleaning

For reliable and safe results, the cleaning process should be properly controlled.

• Select the appropriate cleaning solution. Choose a solution compatible with both the contaminant and the material being cleaned.
• Use the correct ultrasonic frequency. Select a frequency appropriate for the required cleaning intensity and component sensitivity.
• Control the temperature. Avoid excessive heating and follow the cleaning solution manufacturer’s recommendations.
• Avoid over-cleaning. Use the shortest effective cleaning time.
• Do not overload the tank. Adequate spacing allows the ultrasonic energy and cleaning solution to reach the surfaces effectively.
• Rinse when necessary. Remove remaining detergent and loosened contaminants after cleaning.
• Dry thoroughly. Moisture remaining on an electronic assembly can cause corrosion, leakage, or electrical problems.
• Inspect the component. Check the cleaned item before returning it to service.

Applications of Ultrasonic Cleaning

Ultrasonic cleaning is used across many industries and applications, including:

Electronics

• Printed circuit boards.
• Compatible electronic components.
• Connectors.
• Metal contacts.
• Repair and rework components.
• Precision electronic assemblies.

Automotive

• Carburetor components.
• Fuel-system components.
• Small mechanical parts.
• Injectors and compatible metal components.
• Bearings and other precision parts.

Jewelry and Watches

• Jewelry made from compatible materials.
• Metal accessories.
• Certain watch components and tools.

Industrial Manufacturing

• Precision-machined components.
• Metal parts.
• Tools.
• Industrial components.
• Small mechanical assemblies.

Laboratory and Medical Applications

Ultrasonic cleaning can also be used for suitable laboratory instruments and medical equipment when the equipment manufacturer permits ultrasonic processing and the correct cleaning chemistry is used.

Ultrasonic Cleaning vs Conventional Cleaning

Frequently Asked Questions

What is an Ultrasonic Cleaner?

An ultrasonic cleaner is a device that uses high-frequency sound waves to clean delicate and intricate items by generating microscopic bubbles that dislodge contaminants without damaging the surfaces.

How does an Ultrasonic Cleaner work?

An ultrasonic cleaner works by converting electrical energy into mechanical vibrations, creating cavitation bubbles in a cleaning solution that remove dirt, grease, and other contaminants from the surface of objects.

Why should I use an Ultrasonic Cleaner?

Ultrasonic cleaners offer precise, non-contact cleaning, making them ideal for items with intricate parts, such as jewelry, medical tools, and electronics, ensuring thorough cleaning without causing damage.

Can an Ultrasonic Cleaner clean delicate items?

Yes, an ultrasonic cleaner is particularly effective at cleaning delicate items like jewelry and electronics, reaching areas that are difficult to clean manually without risk of damage.

How much does an Ultrasonic Cleaner cost?

The cost of an ultrasonic cleaner can vary based on size, features, and brand. Prices typically range from $50 for small models to several hundred dollars for industrial-grade machines.

What items should not be cleaned in an Ultrasonic Cleaner?

Items with loose stones or delicate components, like some types of pearls or certain watches, should be avoided, as ultrasonic cleaning may cause damage to these materials.

Conclusion

Ultrasonic cleaning is a powerful cleaning technology based primarily on the cavitation effect produced by high-frequency sound waves in a liquid. It can remove contaminants from complex surfaces, small openings, and difficult-to-reach areas with significantly less mechanical effort than many conventional cleaning techniques.

For electronics repair workshops, ultrasonic cleaning can be particularly useful for compatible components and assemblies contaminated with flux, dirt, grease, or other residues. However, successful cleaning depends on selecting the correct frequency, power, cleaning solution, temperature, and cleaning time while carefully considering the compatibility of the components being cleaned.

When properly applied, ultrasonic cleaning provides an efficient, repeatable, and effective method for precision cleaning across electronics, automotive, industrial, laboratory, and many other applications.
